Wire EDM parts are precision components cut or finished with wire EDM (Electric Discharge Machining), especially when the part needs clean internal profiles, narrow slots, sharp corners, or accurate through-cuts in conductive metal.
At Roberson Machine Company, we machine wire EDM parts for tooling, replacement components, production work, and projects that require controlled features and repeatable accuracy.
Learn More About
If you need complex parts cut from conductive metal, our team can review your print, material, tolerances, and production requirements. Contact us online or call 573-646-3996 to discuss wire EDM parts and other precision CNC machining services.
What Types of Parts Are Made With Wire EDM?
Wire EDM is used to make precision components from conductive metals when the finished part needs clean through-cuts, controlled internal geometry, narrow openings, or accurate profiles that conventional cutting tools cannot produce as efficiently. The process is often used for customer parts where one critical feature controls how the component fits, moves, wears, or repeats in production.
Common Parts Made With Wire EDM Machining
Parts machined with wire EDM fall into tooling, production support, replacement, or feature-critical work. The process is often used when a part needs a precise profile, cutout, slot, insert, fixture detail, or inspection feature that conventional machining cannot produce as cleanly. Common examples include:
- Punches and dies: Production tooling used for stamping, forming, cutting, and repeat manufacturing work where edge quality, profile control, and wear performance matter.
- Mold and tooling inserts: Parts with shaped profiles, reliefs, fine internal details, or hardened wear surfaces used in molds, dies, fixtures, and production tooling.
- Fixtures and gauges: Parts used to locate, hold, check, align, or support components during machining, inspection, or assembly.
- Medical and instrument components: Precision parts with small features, clean surfaces, or controlled geometry.
- Valve bodies and flow-control parts: Components where slots, openings, internal profiles, or sealing-related features can affect performance.
- Replacement components: Worn, obsolete, or hard-to-source parts that need accurate geometry recreated from a print, model, or sample.
- Keyed, slotted, and splined parts: Components where internal shape, fit, clearance, or motion control matters more than broad material removal.
- Thin, delicate, hardened, or carbide parts: Components that need clean cutting, accurate profile work, or low-force machining after heat treat or material preparation.
When Do Parts Require Wire EDM?
A part is usually a good fit for wire EDM machining when the material is conductive and the final geometry is difficult to produce cleanly with conventional machining. Many parts end up in wire EDM because one feature needs more access, accuracy, or control than conventional cutting tools can provide.

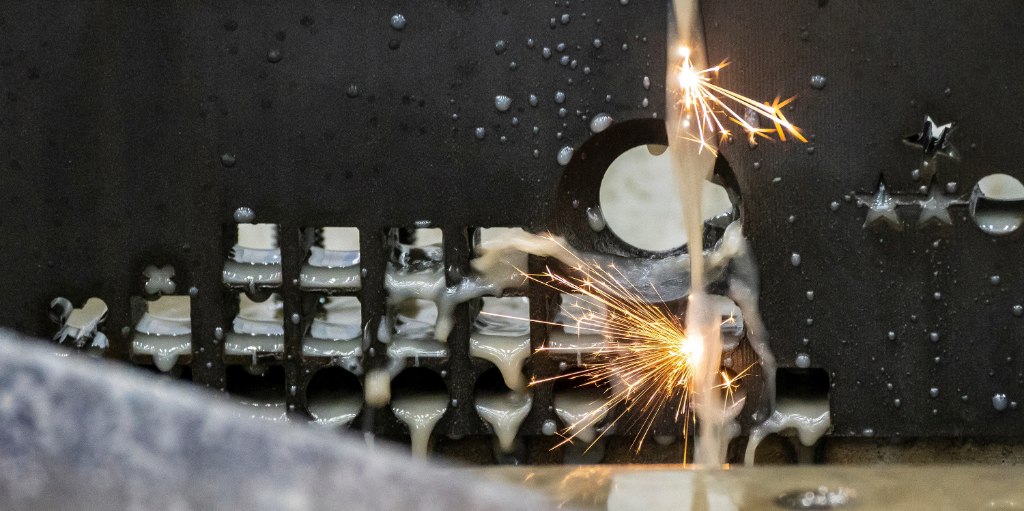

Precise profiles and cutouts
Wire EDM is useful when the finished feature needs to stay accurate through the full material thickness instead of being approached from one side with a conventional cutting tool.
- Internal profiles, shaped openings, and clean through-cuts
- Narrow slots, keyed features, and slotted components
- Dies, tooling inserts, gauges, and other profile-driven parts
Hard-to-machine details
Some parts need wire EDM because the critical feature creates problems for milling alone, especially when tool access, material hardness, or cutting pressure becomes a limiting factor.
- Sharp inside corners, thin sections, and fine details
- Hardened material or post-heat-treat profile work
- Features too narrow or difficult to reach with standard tooling
Critical features that control fit
Not every wire EDM part is complex from end to end. Sometimes one slot, opening, profile, keyway, die detail, or clearance feature determines whether the component fits, locates, moves, seals, wears, or repeats correctly in production.
How Wire EDM Parts Move From Print to Production
Ordering wire EDM parts usually comes down to matching the part requirements with the right machining path. The print, model, material, quantity, tolerances, and critical features all help determine whether wire EDM for parts and projects should handle the main profile, finish a specific detail, or work alongside milling, turning, heat treat, inspection, and other production steps.
- Share the print, model, or sample: Send the part information available, including drawings, CAD files, material requirements, quantities, and any critical tolerances or functional details.
- Review the critical features: Roberson Machine Company reviews the geometry that matters most, such as slots, profiles, cutouts, keyways, inside corners, hardened areas, or features that affect fit and repeatability.
- Confirm the machining path: Some parts may be cut primarily with wire EDM, while others may need milling, turning, heat treat, or other work before EDM finishes the critical feature.
- Machine and inspect the part: Once the path is set, the part moves through machining and inspection so the finished geometry matches the requirements of the print, assembly, or production process.
- Plan for repeat work when needed: For recurring components or future releases, the same part information can help support a more predictable process the next time the job comes back.
For manufacturers, the goal is a finished component that matches the drawing, supports the assembly or tooling process, and can be repeated when production needs continue.

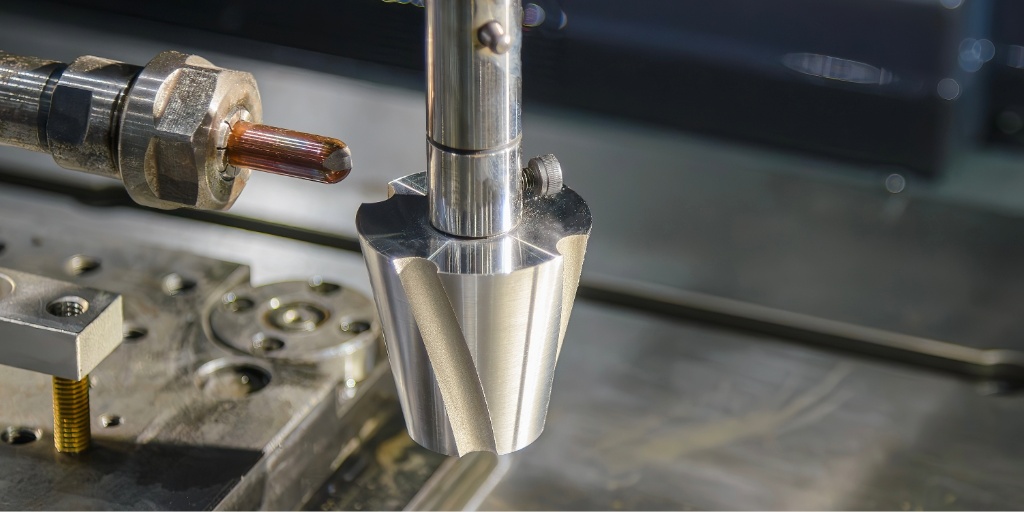

Wire EDM Parts for Production Runs and Repeat Orders
Wire EDM is not limited to one-off problem parts. It can support production runs, recurring orders, and components that need to return to the same geometry across future releases. That matters when a part has a slot, profile, opening, insert detail, or inspection feature that needs to stay consistent from run to run.
Wire EDM can fit into broader bulk part production with CNC machining when the EDM feature is part of a repeatable process. The larger workflow may involve milling, turning, inspection, and other production steps, while wire EDM handles the feature that needs clean access, controlled geometry, or low-force cutting.
- Repeat part geometry: Critical profiles, slots, keyways, and cutouts can be produced consistently across future runs.
- Predictable release planning: Quantities, material requirements, and inspection needs can be reviewed up front so recurring orders are easier to schedule and quote.
- Stable machining paths: Wire EDM can work alongside processes like CNC milling for high-volume production parts when the surrounding geometry and EDM-cut features both matter.
Roberson Machine Company can review quantities, release timing, material requirements, and critical features so the wire EDM process supports both the immediate order and future production needs.
Industries That Use Wire EDM Parts
Wire EDM parts are used across industries that rely on wire EDM when a slot, profile, opening, insert, or tooling detail can affect fit, movement, inspection, or production performance.
- Aerospace: Precision tooling, brackets, seal features, inserts, and components with controlled profiles or hard-to-machine materials.
- Medical: Instrument components, surgical tooling, medical valve bodies, and small conductive components with clean, accurate features.
- Automotive and EV: Powertrain tooling, mold inserts, keyed features, and production support parts with fine internal clearances.
- Packaging: Forming dies, wear parts, cutting details, and production tooling used in repeat manufacturing environments.
- Automation and robotics: Fixtures, gauges, end-of-arm tooling details, housings, and motion-critical components with controlled internal features.
- Oil and energy: Replacement parts, pump components, sealing features, hardened components, and alloy parts used in demanding service conditions.
Materials Used for Wire EDM Parts
Wire EDM parts have to be made from conductive material, but material choice still depends on what the finished component needs to do. Wear life, corrosion resistance, weight, conductivity, heat treatment, inspection requirements, and the larger machining path can all affect how the part should be made.
Wear-resistant tooling and production parts
Tool steels, carbides, and hardened steels are common choices for parts that see repeated contact, cutting, forming, or locating work. Common examples include:
- Punches and dies
- Tooling inserts
- Wear plates
- Hardened production details
Wire EDM is useful here because critical profiles can often be cut after the material has been hardened.
Corrosion-resistant parts for demanding environments
Stainless steel and similar alloys are often used for parts exposed to moisture, cleaning, food production, medical environments, or other conditions where corrosion resistance matters. Wire EDM can help create clean internal profiles, openings, and features without relying only on conventional tool access.
Lightweight or conductive components
Aluminum, brass, copper, and other conductive metals may be used when the part needs:
- Lower weight for brackets, housings, or production support parts
- Electrical or thermal conductivity
- Precise openings, slots, or profiles where geometry matters more than broad material removal
Wire EDM can help produce those features cleanly when conventional tool access or part geometry creates a problem.
Parts that need final features after heat treat
Some parts are not difficult because of the whole material choice. They are difficult because one final feature needs to be cut after heat treat, through a hard section, or in an area that is hard to reach. In those cases, wire EDM can complete the detail without forcing the entire part into a more complicated machining process.

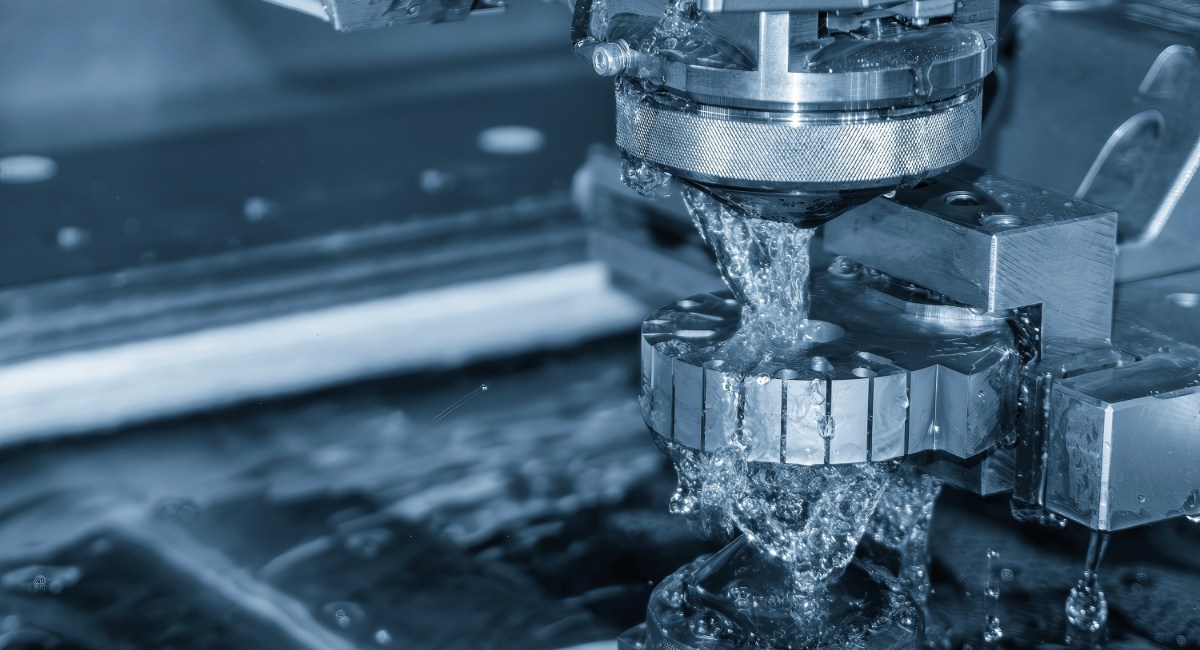

What CNC Machining Methods Are Used With Wire EDM?
Wire EDM parts often involve more than one CNC machining method. EDM may handle the critical profile, slot, cutout, or internal feature while other processes create the surrounding geometry.
- CNC milling: Used for pockets, flats, drilled features, mounting surfaces, and broader part geometry before or after EDM work.
- CNC turning: Used for diameters, bores, shoulders, grooves, and other round features when the part includes rotational geometry.
- 5-axis machining: Used for complex surfaces, multi-side access, and accurate features across several faces or angles.
- Multi-axis machining: Used when a part needs features machined from multiple directions while reducing extra handling between setups.
Roberson Machine Company can review the full part requirements and determine where wire EDM fits into the machining path.
Frequently Asked Questions About Wire EDM Parts
Customers usually want to know whether wire EDM fits the part, what information helps quoting, and how the process works with the rest of the machining path. These FAQs cover common questions about wire EDM parts, materials, production planning, replacement work, and cost factors.
What information helps quote wire EDM parts?
A print, CAD model, or sample part is the best starting point. Material, thickness, tolerances, quantity, delivery timing, and inspection requirements also help define the machining path.
Helpful quoting details include:
- Part drawings, CAD files, or sample parts
- Material type and thickness
- Critical tolerances and feature callouts
- Quantity per run and expected repeat demand
- Inspection, finishing, or documentation requirements
Even if every detail is not finalized, early review can help determine whether wire EDM should handle the full part profile or only one critical feature.
What materials can be used for wire EDM parts?
Wire EDM requires electrically conductive material. Common choices include stainless steel, aluminum, brass, copper, titanium, tool steels, carbides, and hardened steels.
The right material depends on what the finished part needs to do. A wear part, tooling insert, corrosion-resistant component, lightweight part, or conductive component may each require a different material choice before EDM work begins.
Can wire EDM parts require milling, turning, or other machining too?
Many wire EDM parts use more than one machining method. Milling, turning, 5-axis machining, or multi-axis machining may create the surrounding geometry before wire EDM cuts the profile, slot, opening, or internal feature that needs tighter access and control.
In those cases, wire EDM is not replacing the rest of the machining process. It is handling the feature that needs EDM-level precision, clean cutting, or low-force machining.
Can wire EDM be used for repeat production parts?
Wire EDM can support repeat production when the same profile, slot, insert, gauge feature, or production detail needs to come back consistently across future runs. That makes it useful for tooling components, replacement parts, fixture details, and feature-critical production parts.
Repeat work usually benefits from stable drawings, defined material requirements, known inspection needs, and consistent release quantities. Those details help keep the machining path more predictable when the job returns.
Can wire EDM be used for both new parts and replacement parts?
Wire EDM can be used for new parts, replacement components, tooling details, and parts that need an existing geometry recreated from a print, model, or sample. The process is often useful when the replacement part includes a profile, cutout, keyway, slot, or hardened feature that needs to match the original design closely.
For replacement work, the more information available about the original part, the easier it is to evaluate the machining path. Samples, older drawings, material notes, wear patterns, and assembly requirements can all help clarify what the finished part needs to do.
What makes a wire EDM part more expensive or time-consuming?
Cost and lead time usually depend on the material, part thickness, tolerance requirements, feature complexity, inspection needs, and how many machining steps the part requires. A simple profile in prepared stock is different from a hardened part that also needs milling, turning, inspection, and repeat production planning.
Common cost and timing factors include:
- Material type, hardness, and thickness
- Number of profiles, openings, slots, or internal features
- Tolerance and surface finish requirements
- Fixture, setup, and inspection needs
- Quantity, repeat demand, and delivery timing
Clear requirements up front make it easier to quote the job accurately and choose the right machining path.
Work With Roberson Machine Company for Wire EDM Part Production
Roberson Machine Company machines parts for customers who need controlled profiles, clean internal features, repeatable accuracy, and a practical path from print to finished component.
Wire EDM as part of the full machining path
Our team can review more than the EDM cut itself, including whether the part also needs milling, turning, 5-axis machining, multi-axis machining, or other production steps.
Repeatability for bulk and recurring part orders
Machined parts often need to come back the same way across future runs, replacement needs, or larger production schedules. Roberson Machine Company works with parts where controlled geometry, reliable feature quality, and repeatable output matter over time.
Support from print, model, or sample
Bring prints, CAD files, samples, material requirements, quantities, tolerances, or repeat-production needs. We can review the available information and help clarify the machining path.
Related machining capabilities include:
Roberson Machine Company helps manufacturers source wire EDM parts that need clean geometry, careful process planning, and repeatable results. Learn more about how wire EDM can help your business, contact us online, or call 573-646-3996 to discuss your next wire EDM parts project.
